| Frame |
MADE IN ITALY, 3D CAD designed perimeter frame with round and oval high strengh tubes with adjustable swingarm pivot. |
| Subframe |
High strength MADE IN ITALY |
| Swing arm |
In aluminum extruded 7020 with Bucci drawn in 3D mounted on the roller cage MADE IN ITALY dedicated to BR12GP |
| Front fork |

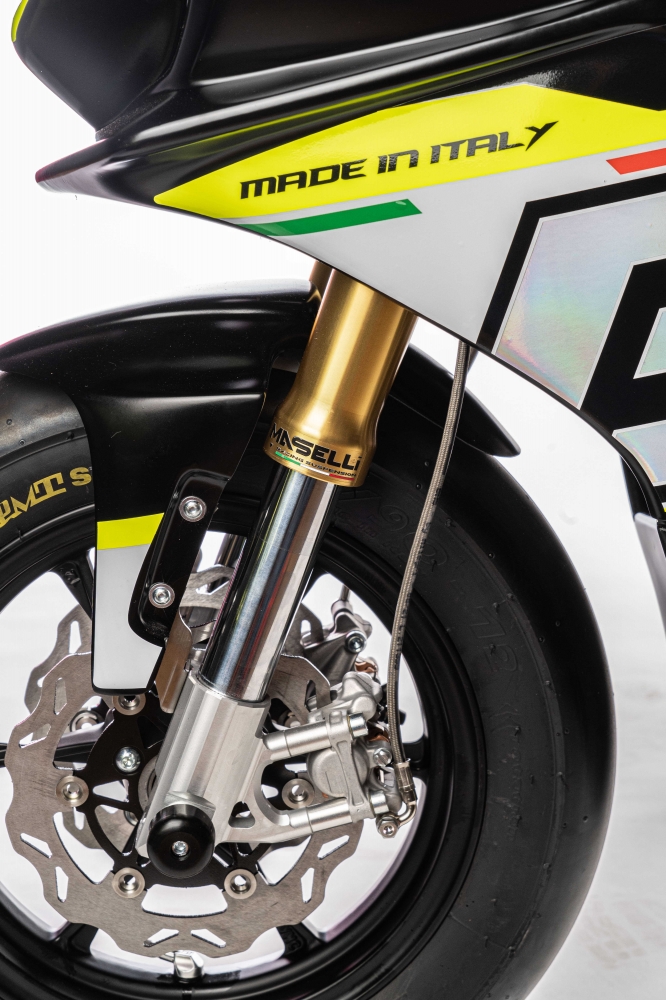

UPSD Bucci by MASELLI diam. 38 lenght 591mm pin dual-axis adjustment, 80mm of travel, NEW CNC feed fork for double brake disc. MADE IN ITALY |

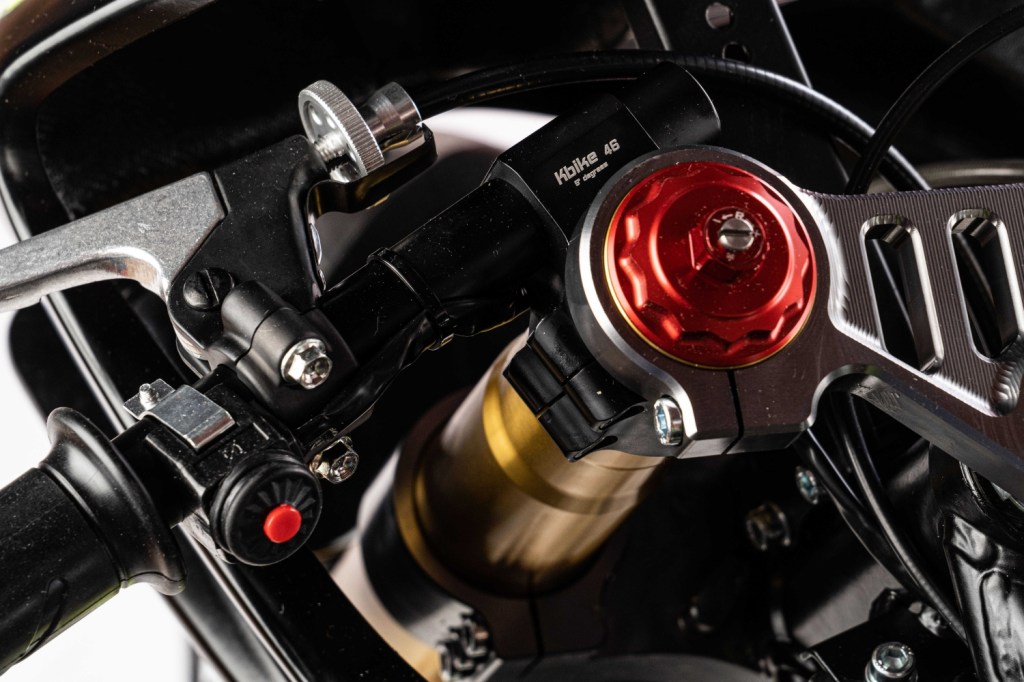

| Triple clamp |
CNC aluminum with dedicated offset for BR12GP with new drawing MADE IN ITALY |

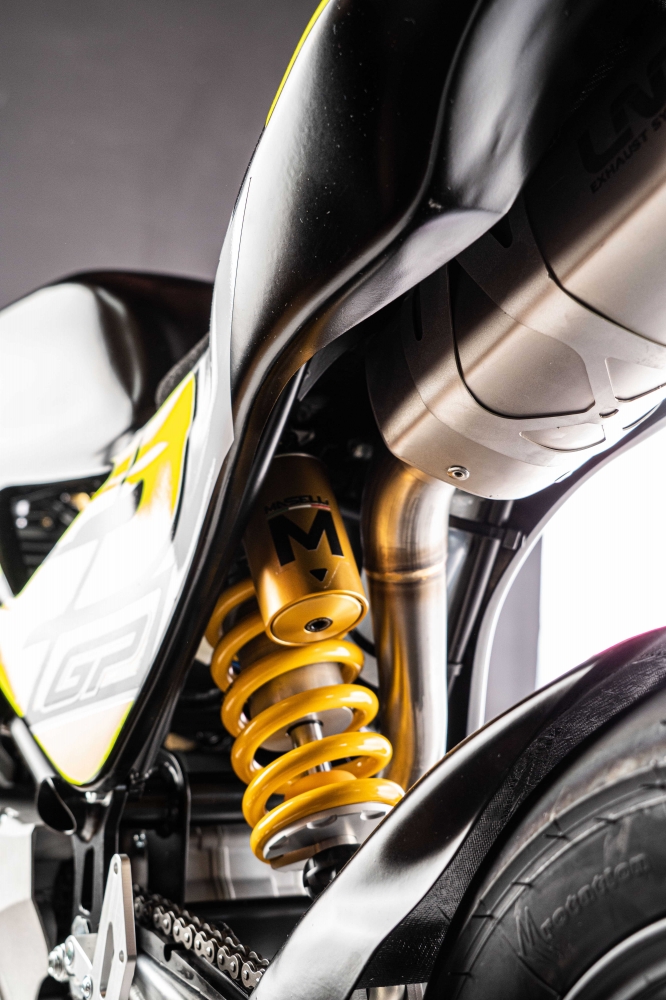

| Rear Shock |
MASELLI with CNC body IN ERGAL, axle 16mm piston diam. 46 travel 30mm F/T, travel 50,4mm F/F Variable wheelbase by 270mm +5 – 4mm. Rebound, compression and spring preload adjustment. MADE IN ITALY |
| Fuel tank |
New Bucci polyethylene tank complete with vented filler fuel cap . MADE IN ITALY |
| Carburator |
PE 28 Taiwan copy (original PE 28 on Daytona Anima engine) |
| Air filter |
Sponge air filter DT1 |
| Ignition |
Electronic ignition, medium weight flywheel |
| Trasmission |
Chain DID 420 |
| Final Trasmission |
Pinion and rear sprocket 420 on request |
| Lubrification |
Oil filter inside crankcase |
| Oil cooler |
Alluminium oil cooler, plastic cover |
| Clutch |
Multidisc, wet type clutch |
| Starting |
Kich starter also with gear inside |
| Front brake |
Twin 200mm disc brake with twin Formula dual piston calipers and master cylinder with integrated tank and hose braid. MADE IN ITALY |

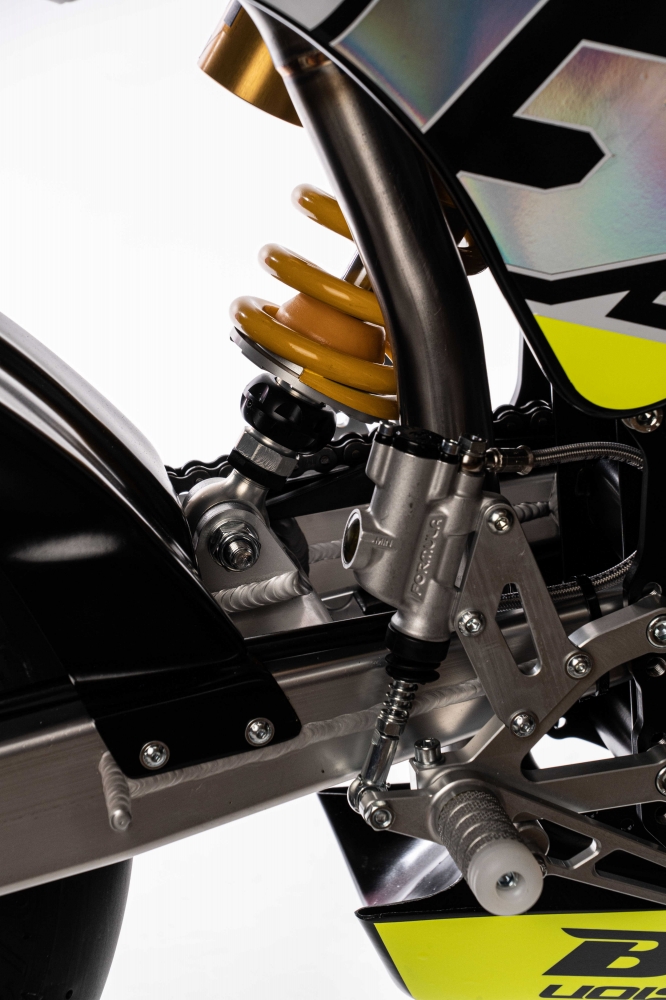

| Rear brake |
160mm disk with Formula twin piston caliper and master cylinder with integrated tank and hose braid. MADE IN ITALY |
| Front wheel |
Lightweight alloy wheel 12×2,50 with aluminum valve |
| Ruota post |
Lightweight alloy wheel 12×3,00 with aluminum valve |
| Tyres |
100/90-12 front 120/80-12 rear PMT |

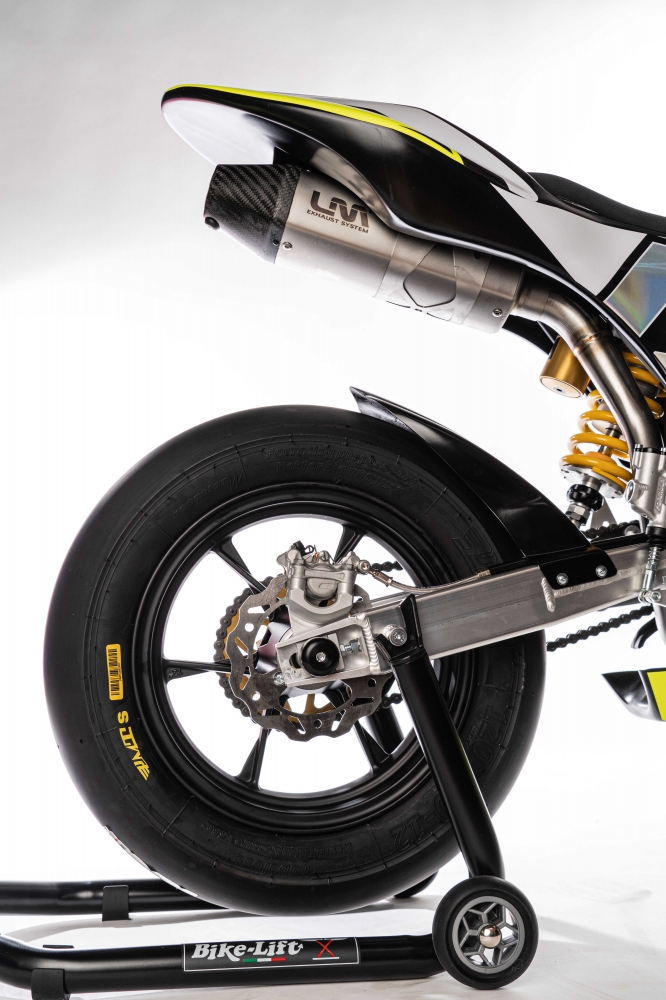

| Exhaust system |
LM Exhaust exclusive Buccimoto in stainless steel with carbon cup and variable section MADE IN ITALY (for Daytona engine exhaust dedicated) |
| Handlebar |
Diam.22 with alloy mounts . MADE IN ITALY |
| Throttle |
Domino Racing MADE IN ITALY |
| Clutch assy |
Adjustable Domino Racing MADE IN ITALY |
| Fairings |
Fiberglass MADE IN ITALY |
| Wheelbase |
1140mm |
| Seat height |
700mm |
| Fuel tank |
3,3 litri |
| Engine available |
yx,tokawa,zonzeng 110-140-150-160 daytona anima 150cc/160cc/190cc |
