Details:j

Frame                           NEW  perimeter frame with round  high strengh tubes with adjustable swingarm pivot drawing by CAD

Subframe                      High strength   MADE IN ITALY

Swing arm                    Boxed In aluminum with central part in investment casting designed in 3D mounted on a  roller cage MADE IN ITALY

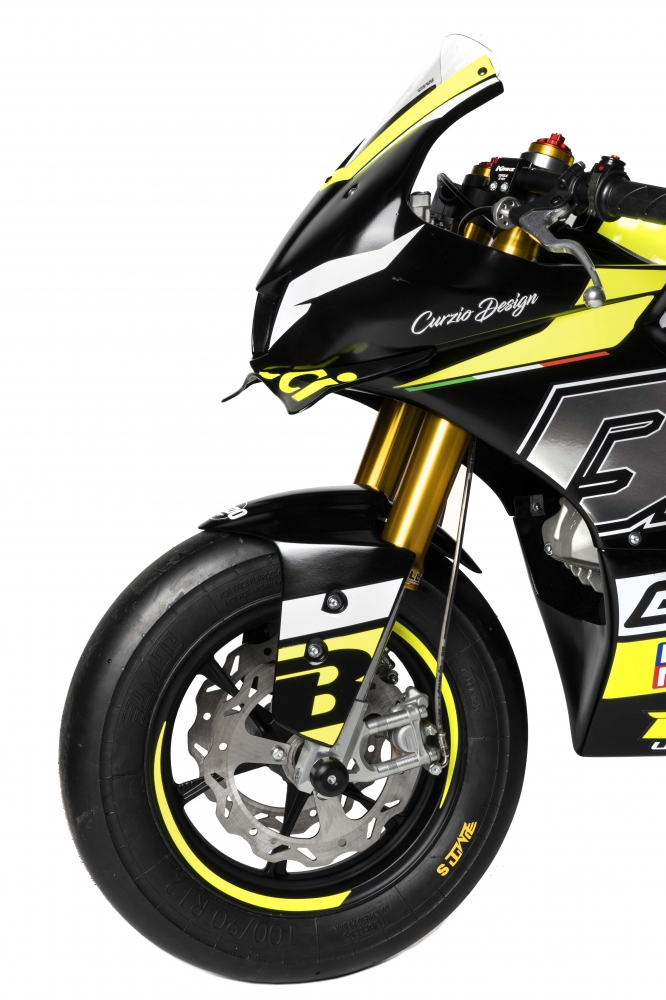

Front fork                    UPSD Bucci by MASELLI diam. 38 lenght 640mm pin dual-axis adjustment, 100mm of travel, NEW CNC feed fork for double brake disc. MADE IN ITALY

Triple clamp                 Machined from solid aluminum with offset dedicated to the BR12GP and top plate machined with a spherical cutter. MADE IN ITALY

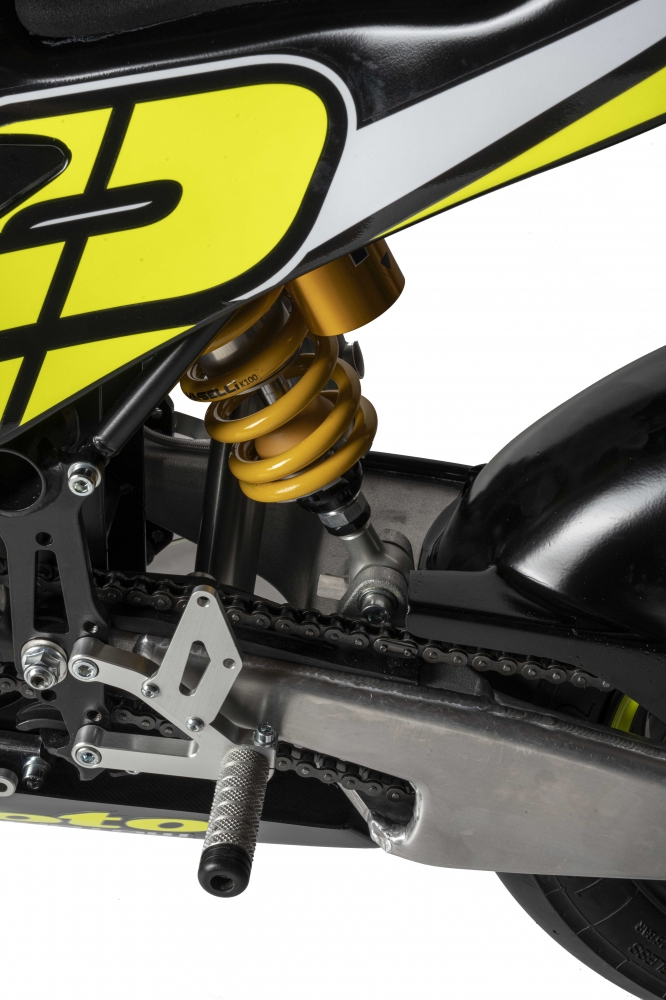

Rear Shock                   MASELLI  with CNC body IN ERGAL; axle 16mm piston diam. 46 travel 30mm F/T, travel  50,4mm F/F Variable wheelbase by 284mm +5 – 4mm. Rebound, compression and spring preload adjustment.  MADE IN ITALY

Fuel tank                       Bucci  polyethylene tank complete with vented filler                                             fuel cap . MADE IN ITALY

Carburator                             PE 28 Taiwan copy (original PE 28 on Daytona Anima                                       engine)

Air filter                        Sponge air filter DT1

Ignition                         Electronic ignition, medium weight flywheel

Trasmission                   Chain  DID 420

Final Trasmission          Pinion and rear sprocket 420 on request

Lubrification                Oil filter inside crankcase

Oil cooler                      Alluminium oil cooler,  plastic cover

Clutch                           Multidisc, wet type clutch

Starting                         Kich starter also with gear inside

Front brake                  Twin 220mm disc brake with twin Formula dual piston calipers and master cylinder with integrated tank and hose braid. MADE IN ITALY

Rear brake                   160mm disk with Formula twin piston caliper and master cylinder  with integrated tank and hose braid. MADE IN ITALY

Front wheel                  Lightweight alloy  wheel  12×2,50 with aluminum valve

Rear wheel                    Lightweight alloy wheel 12×3,00 with aluminum valve

Tyres                             100/90-12 front 120/80-12 rear PMT

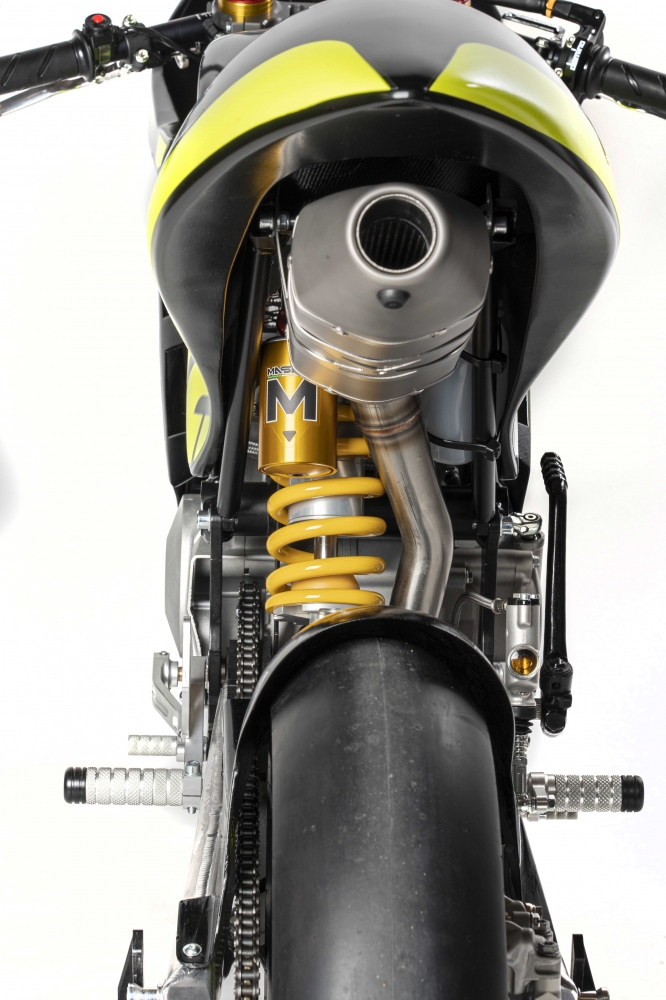

Exhaust system            LM Exhaust exclusive Buccimoto in titnium  with variable section MADE IN ITALY (for Daytona engine exhaust dedicated)

Handlebar                    Diam.22 with alloy mounts . MADE IN ITALY

Throttle                         Domino Racing MADE IN ITALY

Clutch assy                    Adjustable  Domino Racing  MADE IN ITALY

Fairings                         New MADE IN ITALY fiberglass hull with front spoiler                                   fixed with expandables to the front hull

Wheelbase                     1170mm

Seat height                    740mm

Fuel tank                      3,3 litri

Engine available           yx,tokawa,zonzeng 110-140-150-160

                                      daytona anima 150cc/160cc/190cc

Available Options:

• GP Shift linkage
• Maselli front suspension preload cap
• Steering damper Bitubo
• Quick shift electronic system
• EVR Slipper clutch for Daytona
• Carbon fiber full set fairing
• Chain adjuster Bucci
• Frame color choice
• Floating front dual disk
• Oversized oil radiator Bucci aluminum ( no hoses)
• Wireless hour meter
• Set of brembo brake pads front
• Racing exaust with DB killer
• Converstion kit for chain 420 to 415 size (26.7% lighter)
