JM Moto

Details:

Frame                           High-resistance frame and subframe with motor support box and linkage. MADE IN ITALY.

Swing arm                    7020 extruded aluminum with new exclusive design Bucci MADE IN ITALY

Linkage                        CNC alluminium linkage 7020 with stainless steel connecting rods and roller cages. MADE IN ITALY

Front fork                    UPSD MASELLI  diam.38  with new setting with compression  and anodizing gold  MADE IN ITALY

                                      720mm lenght with CNC  front fork legs for double brake disk

Triple clamp                 New drawing and wheelbase 170mm MADE IN ITALY

                                      NEW OFF SET

Rear shock Motard       MASELLI with yellow spring and CNC body with variable wheelbase; stem 16mm chromed piston of 46 2 adjustments. Bearing in the upper part and fork in the lower part MADE IN ITALY

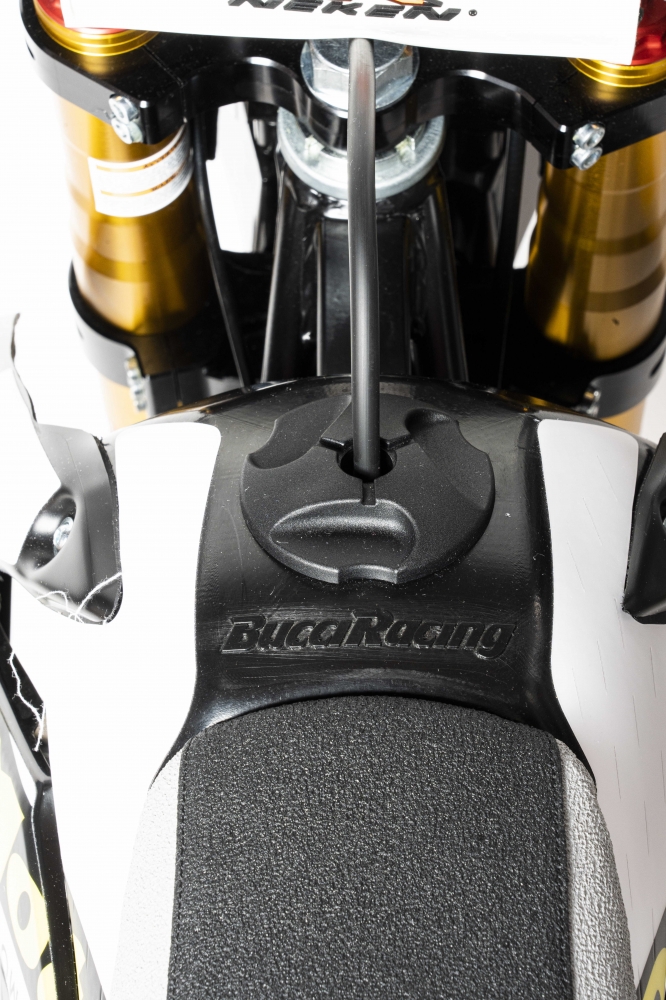

Fuel tank                       Bucci tank with retractable cap MADE IN ITALY

Carburator                             Diameter  28 copy Taiwan (PE 28 original Keihin on                                         Daytona  Anima 150cc-190cc)

Air filter                        Sponge air filter  DT1

Ignition                         Elettronica a volano medium

Transmission                Chain DID 420 B&B

Final transmission        Pinion and rear sprocket 420 on request

Chain guide                  New chain guide MADE IN ITALY

Lubrification                Oil filter inside crankcase

Oil radiator                  In alluminium

Clutch                           5 clutch disk in oil

Starting                         also with gear inside

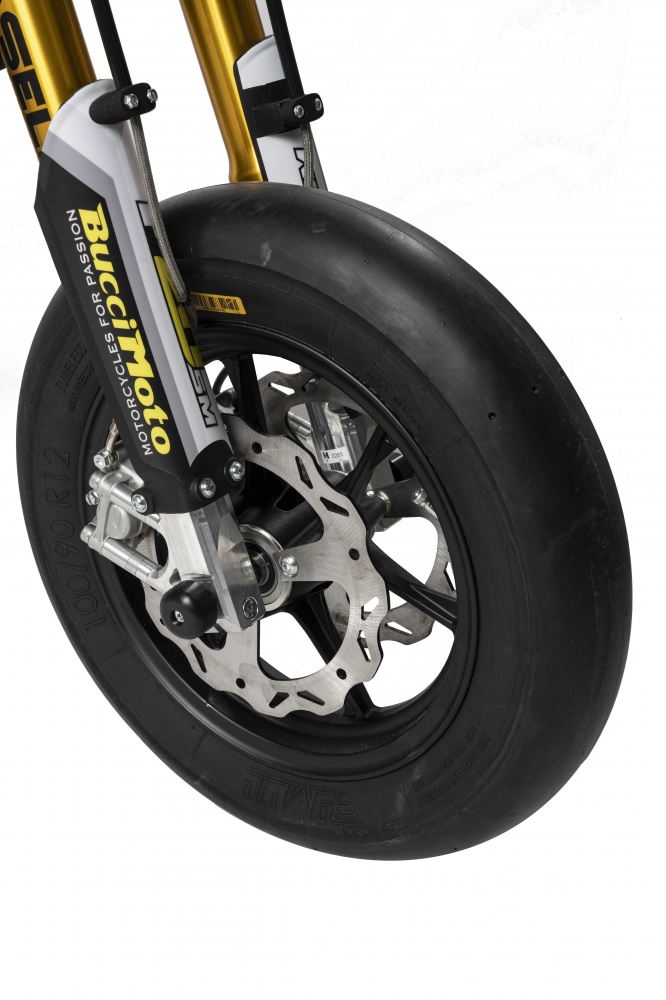

Front brake Motard    New Formula radial with 2 caliper with 2 pistons  MADE IN ITALY with fixed brake disk diam. 220  always MADE IN ITALY

Rear brake                   Formula radial with brake disk  diam.180 MADE IN ITALY

Front wheel Motard     Alluminium tubeless 12×2,50

Rear wheel Motard      Alluminium tubeless 12×3,00

Tyres Motard                100/90-12 front 120/80-12 rear  PMT

Exhaust system            LM in Titanium with new design MADE IN ITALY

Handlebar                    Alluminium black DIAM.28 lower with Neken pad

Throttle                        Domino MADE IN ITALY

Clutch                           Domino MADE IN ITALY

Seat height                    Motard 81cm

Wheel base                    Motard 1190mm

Colour                           Black,white

Engine available           YX 150cc-YX 160cc-Tokawa 160cc

                                      Daytona Anima 150cc-Daytona Anima 190cc-

Available options:

• Slipper clutch EVR
• Flaoting front disk
• Quick shifter electronic system
• Converstion kit for chain 420 to 415 size (26.7% lighter)
• Chain adjuster Bucci
• Set of Brembo brake pads
• Frame color choice
• Floating front dual disk
• Oversized oil radiator Bucci aluminum ( no hoses)
